Notebook to replicate the analysis proposed in the Section Data of the paper¶
You will learn
Reproduce the main analyses and figures from the HGX paper.
Source
Lotito, Q. F., et al. Hypergraphx: a library for higher-order network analysis. Journal of Complex Networks 11.3 (2023). https://arxiv.org/pdf/2303.15356.pdf
Overview¶
Reproduce key analyses from the Hypergraphx paper.
Generate figures and summaries for the main results.
Setup¶
[2]:
# Fix visualization settings
params = {'figure.figsize': (7,6),
'font.family': 'serif',
'axes.labelsize': '29',
'axes.titlesize':'29',
'xtick.labelsize':'23',
'ytick.labelsize':'23',
'legend.fontsize': '20',
'hatch.color': 'white'}
plt.rcParams.update(params)
SIZE_TWO_COLOR = 'darkgrey'
SIZE_THREE_COLOR = '#FFBC79'
SIZE_FOUR_COLOR = '#79BCFF'
hye_facecolor = {SIZE_TWO_COLOR: 'black', SIZE_THREE_COLOR: "#C85200", SIZE_FOUR_COLOR: "#006BA4"}
[1]:
import sys
import numpy as np
import pandas as pd
import networkx as nx
import seaborn as sns
import matplotlib.pyplot as plt
import random
sys.path.append("..")
import hypergraphx
from hypergraphx import Hypergraph
from hypergraphx.readwrite import load_hypergraph, save_hypergraph
import warnings
warnings.simplefilter(action='ignore', category=FutureWarning)
Input data¶
[3]:
H = load_hypergraph("../test_data/hs/hs.json")
print(H)
Hypergraph with 327 nodes and 7818 edges.
Distribution of hyperedge sizes: {2: 5498, 3: 2091, 4: 222, 5: 7}

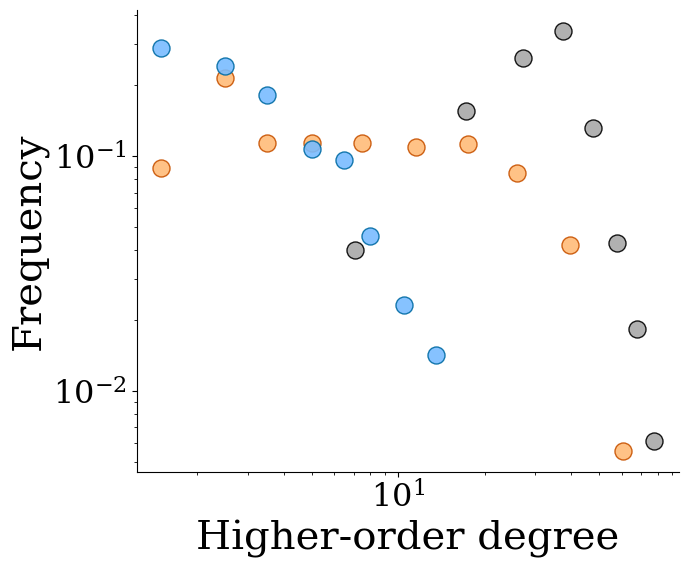

A) Higher-order degree distributions for different orders¶
[4]:
def distr_bin(data, n_bin=30, logbin=True):
###This is a very old function copied from my c++ library. It's ugly but works :)
""" Logarithmic binning of raw positive data;
Input:
data = np array,
bins= number if bins,
logbin = if true log bin
Output (array: bins, array: hist)
bins: centred bins
hist: histogram value / (bin_length*num_el_data) [nonzero]
"""
if len(data)==0:
print( "Error empty data\n")
min_d = float(min(data))
if logbin and min_d<=0:
print ("Error nonpositive data\n")
n_bin = float(n_bin) #ensure float values
bins = np.arange(n_bin+1)
if logbin:
data = np.array(data)/min_d
base= np.power(float(max(data)) , 1.0/n_bin)
bins = np.power(base,bins)
bins = np.ceil(bins) #to avoid problem for small ints
else:
data = np.array(data) + min_d #to include negative data
delta = (float(max(data)) - float(min(data)))/n_bin
bins = bins*delta + float(min(data))
n_bin = int(n_bin)
#print ('first bin: ', bins[0], 'first data:', min(data), 'max bin:', bins[n_bin], 'max data', float(max(data)))
hist = np.histogram(data, bins)[0]
ii = np.nonzero(hist)[0] #take non zero values of histogram
bins = bins[ii]
hist = hist[ii]
bins=np.append(bins,float(max(data))) #append the last bin
bin_len = np.diff(bins)
bins = bins[:-1] + bin_len/2.0 #don't return last bin, centred boxes
if logbin:
hist = hist/bin_len #normalize values
bins = bins*min_d #restore original bin values
else:
bins = bins - min_d
res = list(zip(bins, hist/float(sum(hist)))) #restore original bin values, norm hist
return list(zip(*res))
#fig, ax = plt.subplots(figsize = (8, 4))
# write three color pastel in a color dict
color_dict = {2: SIZE_TWO_COLOR, 3:SIZE_THREE_COLOR, 4:SIZE_FOUR_COLOR}
for size in [2,3,4]:
if size == 2:
logbin = False
else:
logbin = True
degrees = list(H.degree_sequence(size=size).values())
degrees = [d for d in degrees if d > 0]
#print(degrees)
if size == 2:
n_bin = 8
else:
n_bin = 10
bins, frequency =distr_bin(degrees, n_bin=n_bin, logbin=logbin)
# print(bins)
# print(frequency)
# output of scatter in svg
plt.scatter(bins, frequency, alpha = .9, label="Size: {}".format(size), s = 150, c = color_dict[size],
edgecolors=hye_facecolor[color_dict[size]])
#plt.legend(frameon=False, loc = 'lower left', handletextpad =-.2 )
# font size
#plt.rcParams.update({'font.size': 20})
# font serif
#plt.rcParams['font.family'] = 'serif'
# make the dots in the legen closer to the text
plt.xscale('log')
plt.yscale('log')
plt.xlabel("Higher-order degree")
plt.ylabel("Frequency")
sns.despine()

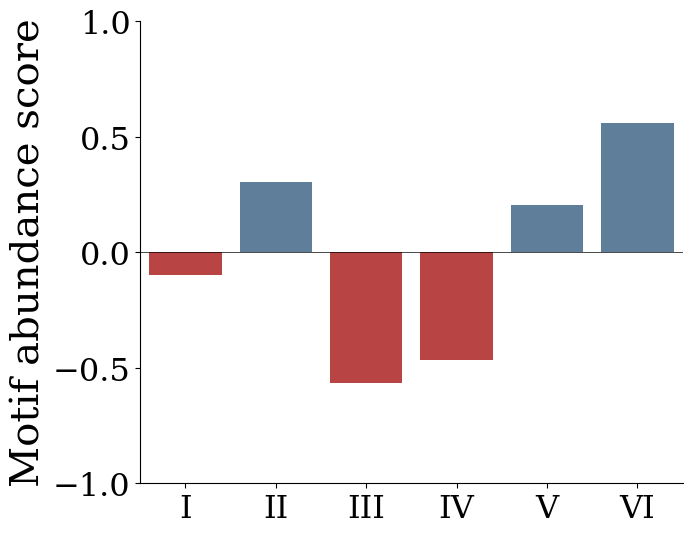

B) Motifs¶
[5]:
from hypergraphx.motifs.motifs import compute_motifs
[6]:
motifs3 = [-0.09743189457908542, 0.3057352878609137, -0.5664795273602301, -0.46704869712770475, 0.20599282046932665, 0.5617529503113179]
# Plot a bar chart of the motif counts
cols = ['#cd3031' if (x < 0) else '#557fa3' for x in motifs3]
g = sns.barplot(x=["I", "II", "III", "IV", "V", "VI"], y=motifs3, palette=cols)
g.axhline(0, color="black", linewidth=0.5)
plt.ylim(-1, 1)
plt.ylabel("Motif abundance score")
sns.despine()

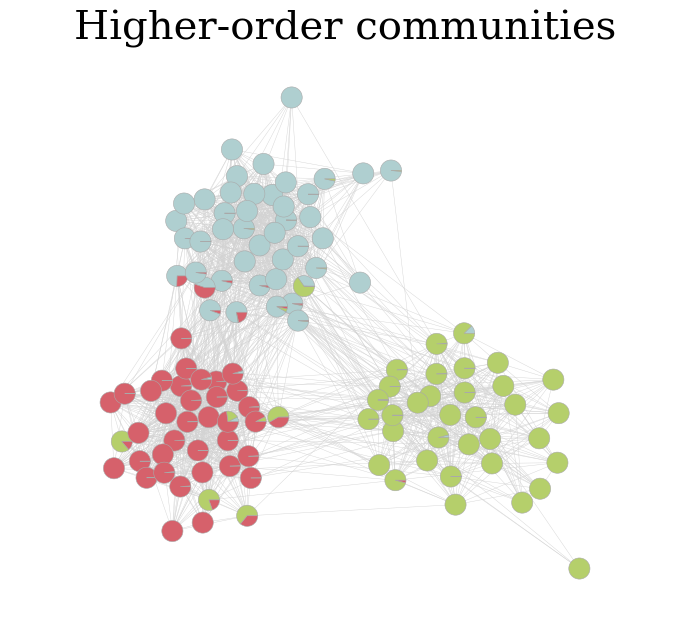

C) Communities¶
[7]:
from hypergraphx.utils import normalize_array, calculate_permutation_matrix
from hypergraphx.communities.hypergraph_mt.model import HypergraphMT
from hypergraphx.viz import draw_communities
from hypergraphx.filters.metadata_filters import filter_hypergraph
[8]:
# For visualization purposes we analyse only 3 classes ['PC', 'PC*', 'PSI*']
H_filtered = load_hypergraph("../test_data/hs/hs.json")
filter_hypergraph(H_filtered, node_criteria = {'class': ['PC', 'PC*', 'PSI*']})
[9]:
# Fix setting
K = 3 # number of communities
seed = 20 # random seed
n_realizations = 10 # number of realizations with different random initialization
max_iter = 500 # maximum number of EM iteration steps before aborting
check_convergence_every = 1 # number of steps in between every convergence check
normalizeU = False # if True, then the membership matrix u is normalized such that every row sums to 1
baseline_r0 = False # if True, then for the first iteration u is initialized around the solution of the Hypergraph Spectral Clustering
verbose = False # flag to print details
[10]:
# Model training
model = HypergraphMT(n_realizations=n_realizations,
max_iter=max_iter,
check_convergence_every=check_convergence_every,
verbose=verbose
)
u, _, _ = model.fit(H_filtered,
K=K,
seed=seed,
normalizeU=normalizeU,
baseline_r0=baseline_r0
)
[11]:
# Normalize membership matrix by row
u = normalize_array(u, axis=1)
[12]:
# Visualize with a network and pie charts
col = {0:'#AFCFD0', 1: '#b5cf6b', 2: '#d6616b'}
plt.subplot(1,1,1)
ax=plt.gca()
draw_communities(hypergraph=H_filtered, u=u, col=col, node_size=0.03, ax=ax, with_node_labels=False,
scale=0.8, opt_dist=1, wedge_width=0.4, threshold_group=0., wedge_color='darkgray')
sns.despine()
plt.title("Higher-order communities")
#plt.savefig("figures/communities.svg", bbox_inches="tight")
[12]:
Text(0.5, 1.0, 'Higher-order communities')

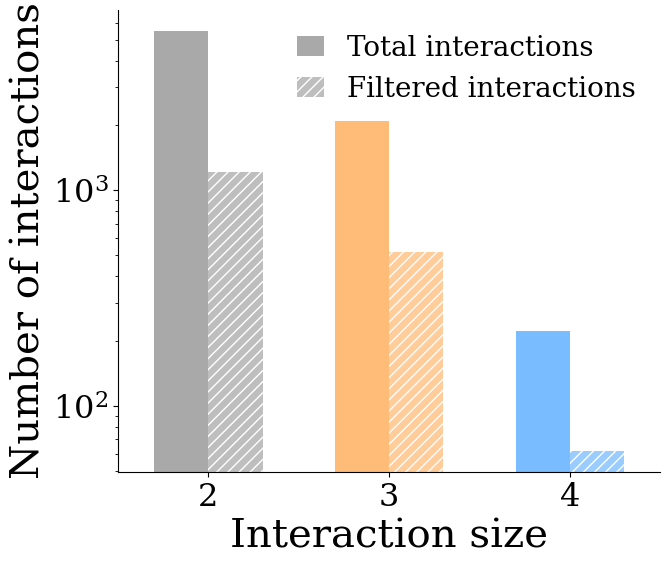

D) Statistics of the filtered systems after applying SVH¶
[13]:
from hypergraphx.filters import get_svh
[14]:
validated = get_svh(H, mp=True)
[18]:
import pandas as pd
df_list = []
for size in validated:
if size < 5:
data = validated[size]
print(f"Processing size {size}")
# Check if data is empty
total_count = data.shape[0]
if total_count == 0:
print(f"No data for size {size}")
continue
# Create DataFrame for total interactions
df_total = pd.DataFrame({
'size': [size] * total_count,
'fdr': ['Total interactions'] * total_count
})
df_list.append(df_total)
if 'fdr' in data.columns and data['fdr'].dtype == bool:
# Filter data where 'fdr' is True
filtered_data = data[data['fdr']]
filtered_count = filtered_data.shape[0]
print(f"Filtered interactions count: {filtered_count}")
if filtered_count > 0:
# Create DataFrame for filtered interactions
df_filtered = pd.DataFrame({
'size': [size] * filtered_count,
'fdr': ['Filtered interactions'] * filtered_count
})
df_list.append(df_filtered)
else:
print(f"No filtered interactions for size {size}")
else:
print(f"'fdr' column missing or not boolean in data for size {size}")
if df_list:
df = pd.concat(df_list, ignore_index=True)
else:
df = pd.DataFrame(columns=['size', 'fdr'])
Processing size 2
Filtered interactions count: 1217
Processing size 3
Filtered interactions count: 518
Processing size 4
Filtered interactions count: 62
[19]:
g = sns.countplot(data=df, x="size", hue="fdr", width=0.6)
count = 0
g.patches[0].set_facecolor(SIZE_TWO_COLOR)
g.patches[1].set_facecolor(SIZE_THREE_COLOR)
g.patches[2].set_facecolor(SIZE_FOUR_COLOR)
g.patches[3].set_facecolor(SIZE_TWO_COLOR)
g.patches[3].set_alpha(0.75)
g.patches[3].set_hatch('///')
g.patches[4].set_facecolor(SIZE_THREE_COLOR)
g.patches[4].set_alpha(0.75)
g.patches[4].set_hatch('///')
g.patches[5].set_facecolor(SIZE_FOUR_COLOR)
g.patches[5].set_alpha(0.75)
g.patches[5].set_hatch('///')
plt.ylabel("Number of interactions")
plt.yscale("log")
plt.xlabel("Interaction size")
sns.despine()
plt.legend(loc='upper right', frameon=False, handlelength=1)
#plt.savefig("figures/svh.svg", bbox_inches="tight")
[19]:
<matplotlib.legend.Legend at 0x127e32880>
E) Ability of the sampling method to reproduce one measure¶
[20]:
from hypergraphx.communities.hy_mmsbm.model import HyMMSBM
from hypergraphx.generation.hy_mmsbm_sampling import HyMMSBMSampler
from hypergraphx.measures.sub_hypergraph_centrality import subhypergraph_centrality
[21]:
SEED = 112233
np.random.seed(SEED)
random.seed(SEED)
# First, infer generative parameters utilizing Hy-MMSBM.
model = HyMMSBM(K=9, assortative=True)
model.fit(H, n_iter=100)
# Sample based on these
sampler = HyMMSBMSampler(
u = model.u,
w = model.w,
max_hye_size = None,
exact_dyadic_sampling = True,
burn_in_steps = 1000,
intermediate_steps = 1000,
)
samples = sampler.sample(
deg_seq = None,
dim_seq = None,
avg_deg = None,
initial_hyg = H,
allow_rescaling = False
)
sampled_h = [next(samples) for _ in range(10)]
/Users/francesco/hgx-dev/hypergraphx/hypergraphx/generation/hy_mmsbm_sampling.py:493: RuntimeWarning: overflow encountered in expm1
np.expm1(prob_new) / np.expm1(prob_old),
/Users/francesco/hgx-dev/hypergraphx/hypergraphx/generation/hy_mmsbm_sampling.py:493: RuntimeWarning: overflow encountered in expm1
np.expm1(prob_new) / np.expm1(prob_old),
/Users/francesco/hgx-dev/hypergraphx/hypergraphx/generation/hy_mmsbm_sampling.py:493: RuntimeWarning: overflow encountered in expm1
np.expm1(prob_new) / np.expm1(prob_old),
/Users/francesco/hgx-dev/hypergraphx/hypergraphx/generation/hy_mmsbm_sampling.py:493: RuntimeWarning: overflow encountered in expm1
np.expm1(prob_new) / np.expm1(prob_old),
/Users/francesco/hgx-dev/hypergraphx/hypergraphx/generation/hy_mmsbm_sampling.py:493: RuntimeWarning: overflow encountered in expm1
np.expm1(prob_new) / np.expm1(prob_old),
/Users/francesco/hgx-dev/hypergraphx/hypergraphx/generation/hy_mmsbm_sampling.py:493: RuntimeWarning: overflow encountered in expm1
np.expm1(prob_new) / np.expm1(prob_old),
/Users/francesco/hgx-dev/hypergraphx/hypergraphx/generation/hy_mmsbm_sampling.py:493: RuntimeWarning: overflow encountered in expm1
np.expm1(prob_new) / np.expm1(prob_old),
/Users/francesco/hgx-dev/hypergraphx/hypergraphx/generation/hy_mmsbm_sampling.py:493: RuntimeWarning: overflow encountered in expm1
np.expm1(prob_new) / np.expm1(prob_old),
/Users/francesco/hgx-dev/hypergraphx/hypergraphx/generation/hy_mmsbm_sampling.py:493: RuntimeWarning: overflow encountered in expm1
np.expm1(prob_new) / np.expm1(prob_old),
/Users/francesco/hgx-dev/hypergraphx/hypergraphx/generation/hy_mmsbm_sampling.py:493: RuntimeWarning: invalid value encountered in scalar divide
np.expm1(prob_new) / np.expm1(prob_old),
[22]:
samples_centr = [subhypergraph_centrality(h) for h in sampled_h]
original_centr = subhypergraph_centrality(H)
[23]:
SAMPLE_IDX = 0
sample_centr = samples_centr[SAMPLE_IDX]
hist = plt.hist(
[
original_centr - np.mean(original_centr),
samples_centr[SAMPLE_IDX] - np.mean(samples_centr[SAMPLE_IDX])
],
# label=["Dataset", "Sample"],
cumulative=True,
color=['#3d7296','#bac9dc'],
alpha=0.75,
#rwidth=0.5,
bins=18,
density=True,
)
xmin, xmax = plt.xlim()
plt.xlim(xmin, xmax)

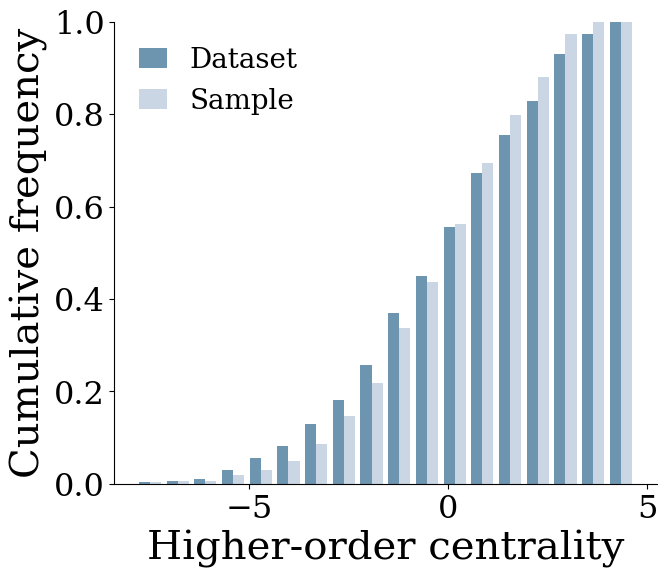

plt.ylabel("Cumulative frequency")
plt.xlabel("Higher-order centrality")
plt.ylim(0,1)
sns.despine()
plt.legend(frameon=False, labels=["Dataset", "Sample"], loc="upper left", handlelength=1)
[23]:
<matplotlib.legend.Legend at 0x12c08b8e0>

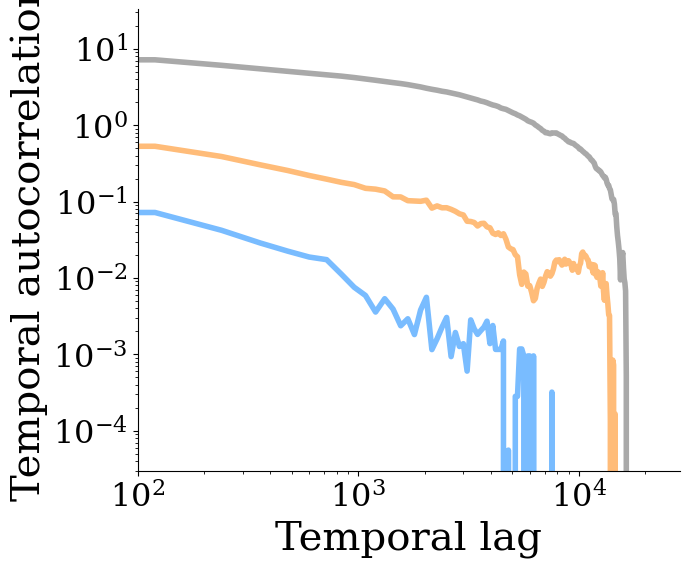

F) Temporal higher-order properties¶
[29]:
correlation_by_order = np.load("./_example_data/temporal_correlations.npy")
[30]:
#fig, ax = plt.subplots(1,1,figsize=(8,6))
plt.subplot(1,1,1)
ax = plt.gca()
color_dict = {2: SIZE_TWO_COLOR, 3:SIZE_THREE_COLOR, 4:SIZE_FOUR_COLOR}
for d in range(3):
ax.plot(range(0,1440*20,6*20),correlation_by_order[d,:], label="size = %s" % (d+2),
color=color_dict[2+d], lw=4)
ax.set_xlabel("Temporal lag")
ax.set_ylabel("Temporal autocorrelation")
ax.tick_params(axis='both', which='major')
ax.loglog()
ax.set_xlim(left=100,right=1441*20)
sns.despine()

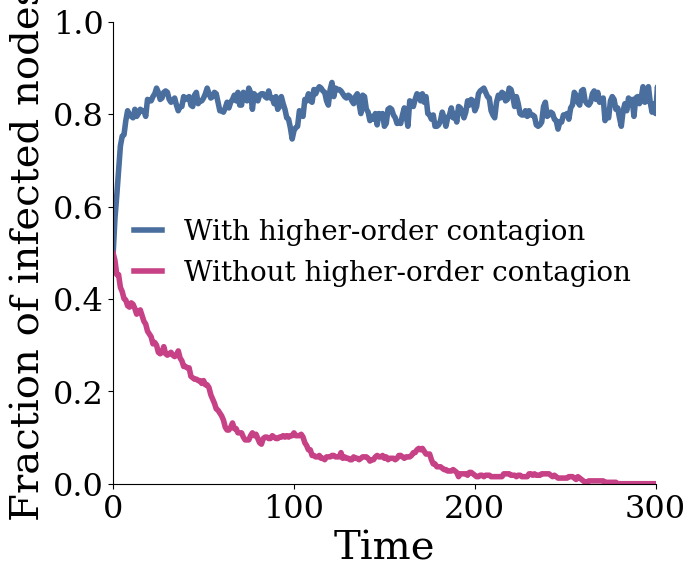

G) Statistics of a higher-order spreading process run on top of it¶
[26]:
social_contagion_data = np.load("./_example_data/social_contagion.npy")
[27]:
plt.subplot(1,1,1)
ax = plt.gca()
T = 500
ax.plot(range(T),social_contagion_data[:,0],
lw=4, c='#4a6e9e',
label="With higher-order contagion")
ax.plot(range(T),social_contagion_data[:,1],
lw=4, c='#C74187',
label="Without higher-order contagion")
ax.set_xlim(0,300)
ax.set_ylim(0,1)
ax.tick_params(axis='both', which='major')
ax.set_xlabel("Time")
ax.set_ylabel("Fraction of infected nodes")
ax.legend(frameon=False, loc="right", handlelength=1)
sns.despine()

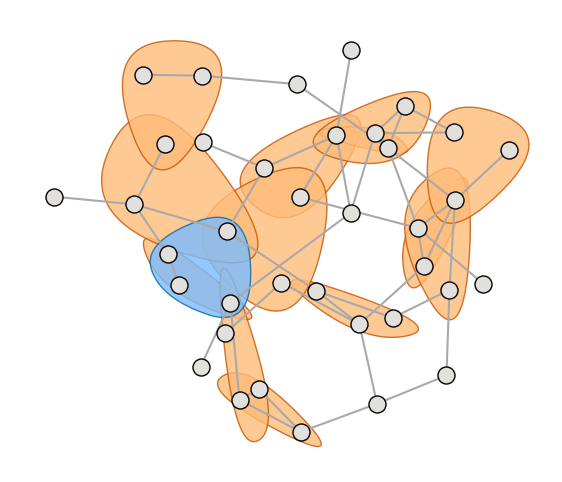

H) Visualizations¶
[28]:
from hypergraphx.readwrite.loaders import load_high_school
from hypergraphx.filters import get_svh
from hypergraphx.viz.draw_hypergraph import draw_hypergraph
from hypergraphx.representations.projections import clique_projection
---------------------------------------------------------------------------
ModuleNotFoundError Traceback (most recent call last)
Cell In[28], line 1
----> 1 from hypergraphx.readwrite.loaders import load_high_school
2 from hypergraphx.filters import get_svh
3 from hypergraphx.viz.draw_hypergraph import draw_hypergraph
ModuleNotFoundError: No module named 'hypergraphx.readwrite.loaders'
[ ]:
H = load_high_school("../test_data/hs/hs.json", filter_by_class=['PC*'])
print(H)
Hypergraph with 39 nodes and 754 edges.
Distribution of hyperedge sizes: {2: 519, 3: 217, 4: 18}
[ ]:
# Get validated hyperedges
hs_svh = get_svh(H, approximate_pvalue=True, mp=True)
# Filter hypergraph
e4 = hs_svh[4]
e4 = e4[e4['fdr']]
lim = e4['pvalue']
lim = list(lim)
lim = list(sorted(lim))
print(lim)
lim = lim[-1]
edges = []
lim = float(lim)
for size in hs_svh:
for i in range(len(hs_svh[size])):
a = float(hs_svh[size]['pvalue'][i])
b = bool(hs_svh[size]['fdr'][i])
if a <= lim and b:
edges.append(hs_svh[size]['edge'][i])
print(len(edges))
H2 = Hypergraph(edges)
lcc = H2.largest_component()
H2 = H2.subhypergraph(lcc)
[3.0771767141041745e-07]
61
[ ]:
hyperedge_color_by_order = {2: SIZE_THREE_COLOR, 3: SIZE_FOUR_COLOR}
hyeperedge_facecolor_by_order = {2: hye_facecolor[SIZE_THREE_COLOR], 3: hye_facecolor[SIZE_FOUR_COLOR]}
[ ]:
pos = nx.spring_layout(clique_projection(H2, keep_isolated=True),
iterations=120, seed=17, scale=1, k=0.75)
pos[214] = [0.17580071, 0.07780574]
pos[116] = [-0.02649419, 0.14016711]
pos[923] = [-0.50259044, -0.20990672]
[ ]:
plt.subplot(1,1,1)
ax=plt.gca()
draw_hypergraph(
H2, ax=ax, pos=pos,
edge_width=1.5, edge_color=SIZE_TWO_COLOR, hyperedge_color_by_order=hyperedge_color_by_order,
hyperedge_facecolor_by_order=hyeperedge_facecolor_by_order, hyperedge_alpha=0.8,
node_size=150, node_color='#E2E0DD', node_facecolor='black', node_shape='o', with_node_labels=False
)
sns.despine()

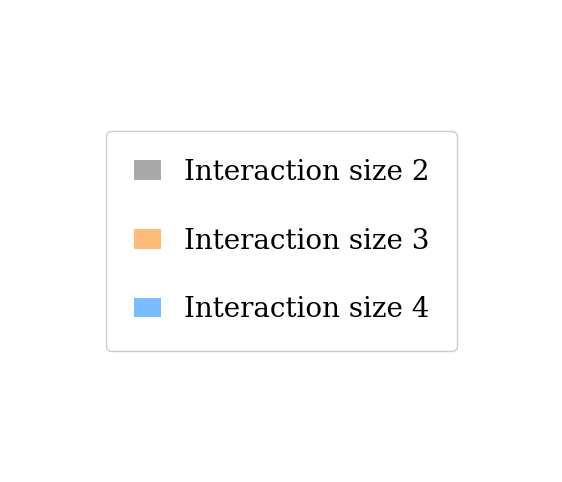

H) Central panel¶
[ ]:
from matplotlib.patches import Patch
[ ]:
plt.subplot(1,1,1)
ax = plt.gca()
color_dict = {2: SIZE_TWO_COLOR, 3:SIZE_THREE_COLOR, 4:SIZE_FOUR_COLOR}
labels = {2: 'Interaction size 2', 3: 'Interaction size 3', 4: 'Interaction size 4'}
plt.plot()
handles = [Patch(facecolor=color_dict[d], label=labels[d]) for d in color_dict.keys()]
ax.legend(handles=handles, ncol=1, loc='center', framealpha=True, handlelength=1, labelspacing=1.5, borderpad=1)
ax.axis('off')
sns.despine()
plt.savefig("figures/legend.svg", bbox_inches="tight")
